10 Person Welfare Unit

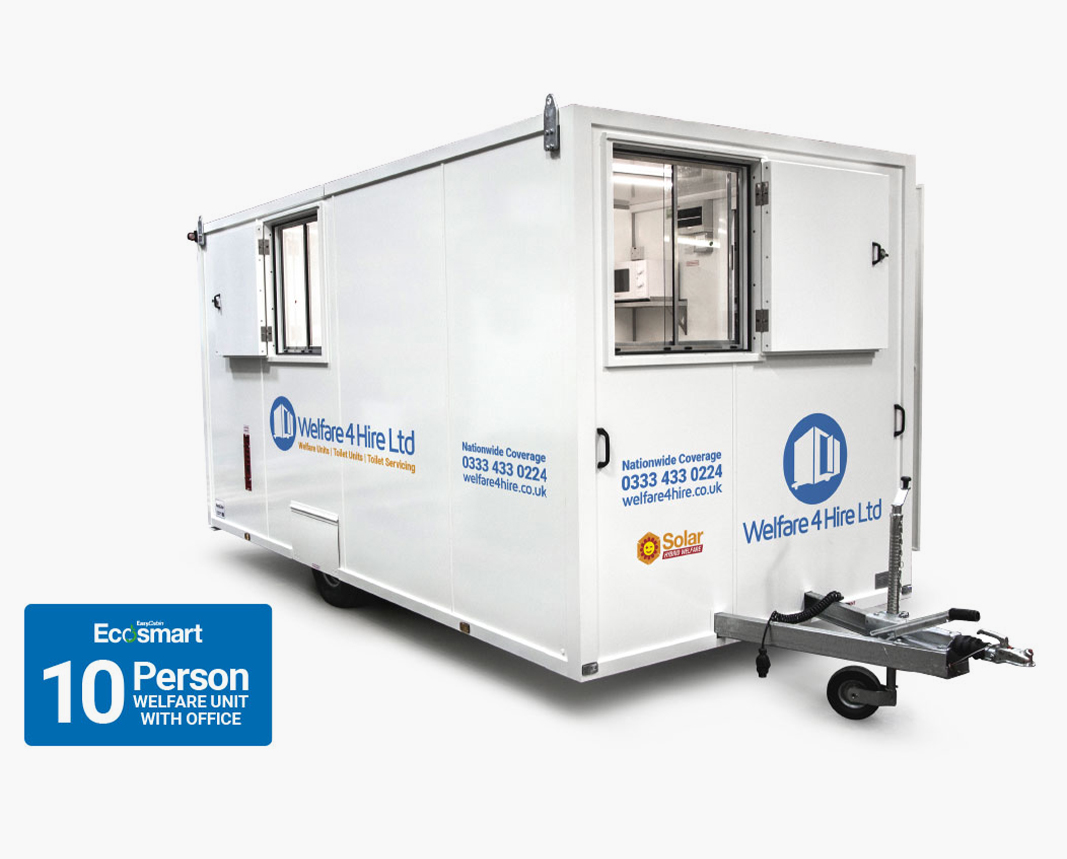

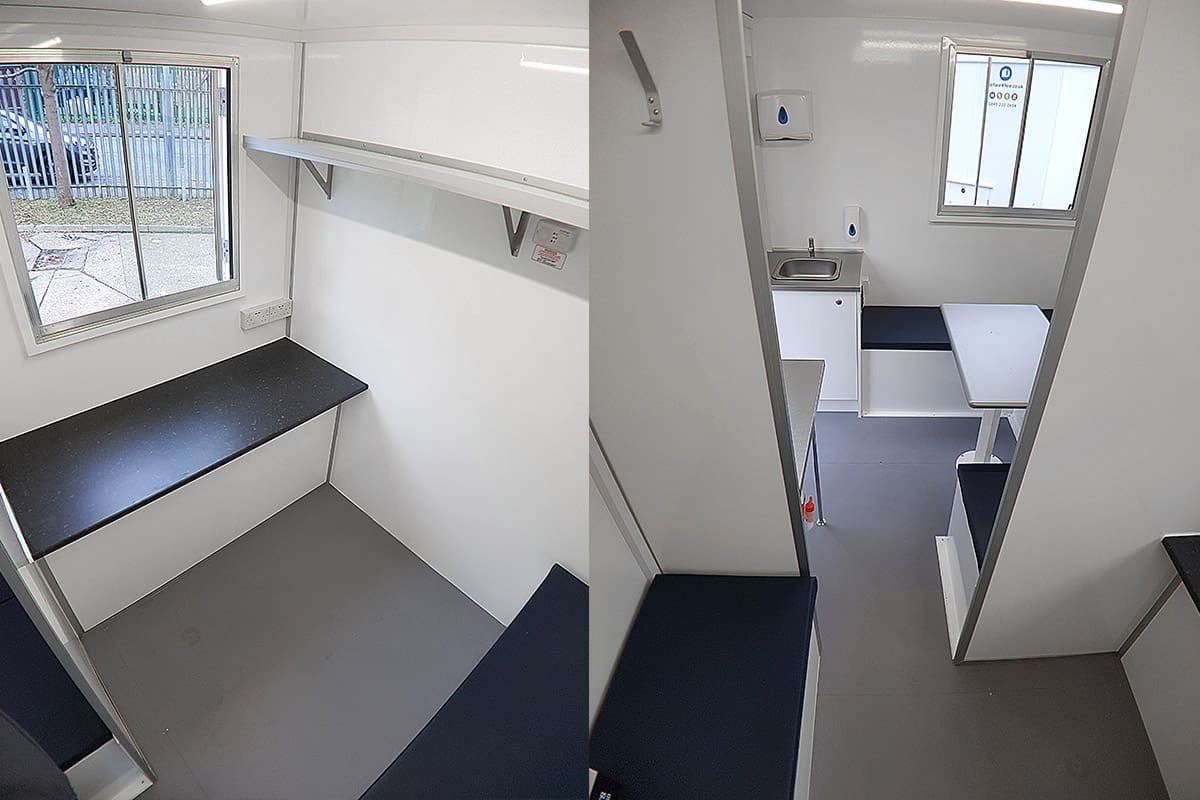

10 Person Welfare Unit With Office — Specification

Our 10-person welfare cabins stand out with their exceptional design and superior quality. Featuring sleek, flat sides, they present a visually appealing alternative to the standard profiled sides of typical site containers. This elegant design makes them not only ideal for construction sites, but also enhances the overall aesthetic of any location where they are utilised. Our 10 person welfare units are constructed from patented high-strength composite panels, with a galvanised steel exterior, seamless GRP interior and high-density foam insulation. This design ensures rust-free, washable surfaces, enhancing durability and maintenance.

All of our welfare units offer a range of benefits - our eco 10 welfare unit is no exception. As well as a canteen and toilet facilities, our 10 person welfare unit also includes an office. When you choose our units you can be confident they will provide you with everything you could possibly need whilst working on-site. Our main aim is to ensure comfort and convenience so you can focus on the task at hand. If you are looking to implement welfare and office facilities on-site, we have the perfect solution.

Why Choose Us?

We will ensure no less than quality with each and every one of our 10 person welfare units. Boasting optimum levels of comfort, minimal maintenance, fully HSE compliance and eco-friendly functionality, our portable office cabin hire unit could not be better. We truly considered everything with our cabins for hire, so that there is no need for compromise. Not only do we supply excellent products, but we always guarantee quality service too. Our expert team is always on hand to provide you with assistance or expert advice, should you need it. When you choose us, you will never be left in the dark.

If you are looking for an HSE compliant, eco-friendly and practical solution to both welfare facilities and portable office cabins for hire, then we offer the ideal solution!

To find out more about our 10 person welfare unit with office facilities, or any of our other products or services, do not hesitate to get in touch with a member of the team on 0333 433 0224. Alternatively, click here to visit our Contact Us page. We look forward to hearing from you!

Summary

Our 10 person welfare units include an office and canteen, with separate toilet and drying room includes:

  • Class-leading design and quality
  • Low maintenance, emissions & fuel consumption
  • Ecosmart - Minimises power usage of the generator, to operate in the most efficient way possible
  • Easy to tow and move, ready to use in 45 seconds
  • Compliant with HSE regulations
  • Robust galvanised steel construction

For full specification please view our brochure.

SPECIFICATION - 10 PERSON
WELFARE UNIT

DOWNLOAD FULL BROCHURE

DOWNLOAD COMPARISON CHART

Dimensions

  • Net Weight: 2145Kg
  • Gross Weight: 2240Kg
  • Unit Length: 4.91m
  • Unit Width: 2.42m
  • Unit Height: 2.36m
  • Towing Length: 6.12m
  • Towing Height: 2.60m

Specifications

Movability

  • Lightweight easy to tow
  • Soft cushioning Hydraulic system
  • Balanced loading, for better towing
  • 13" wheels with the ability in the event of a puncture to change at the side of the road with ease
  • Road lights and number plate holder built in, no need for a tailboard to be fitted
  • Accidental collisions can occur, however our corners are designed to absorb impact and are easily maintained

Facilities

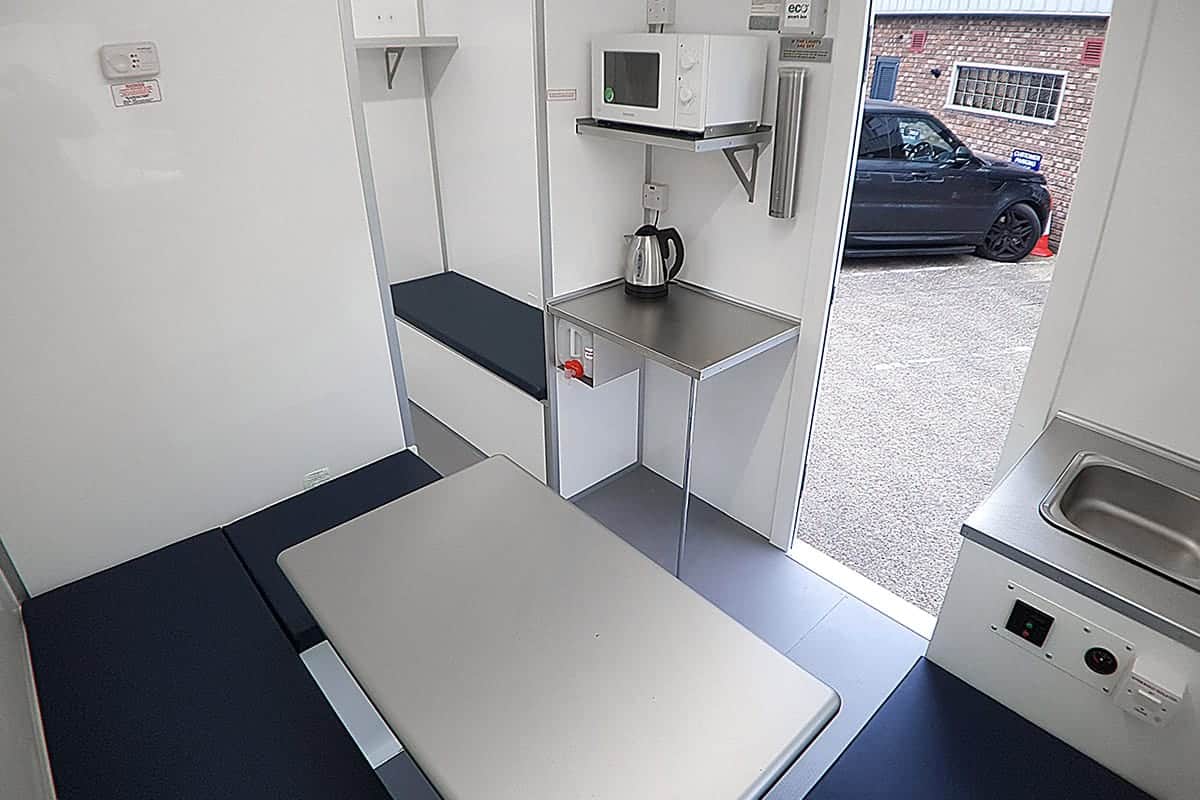

  • Easy to use canteen facilities; kettle & microwave

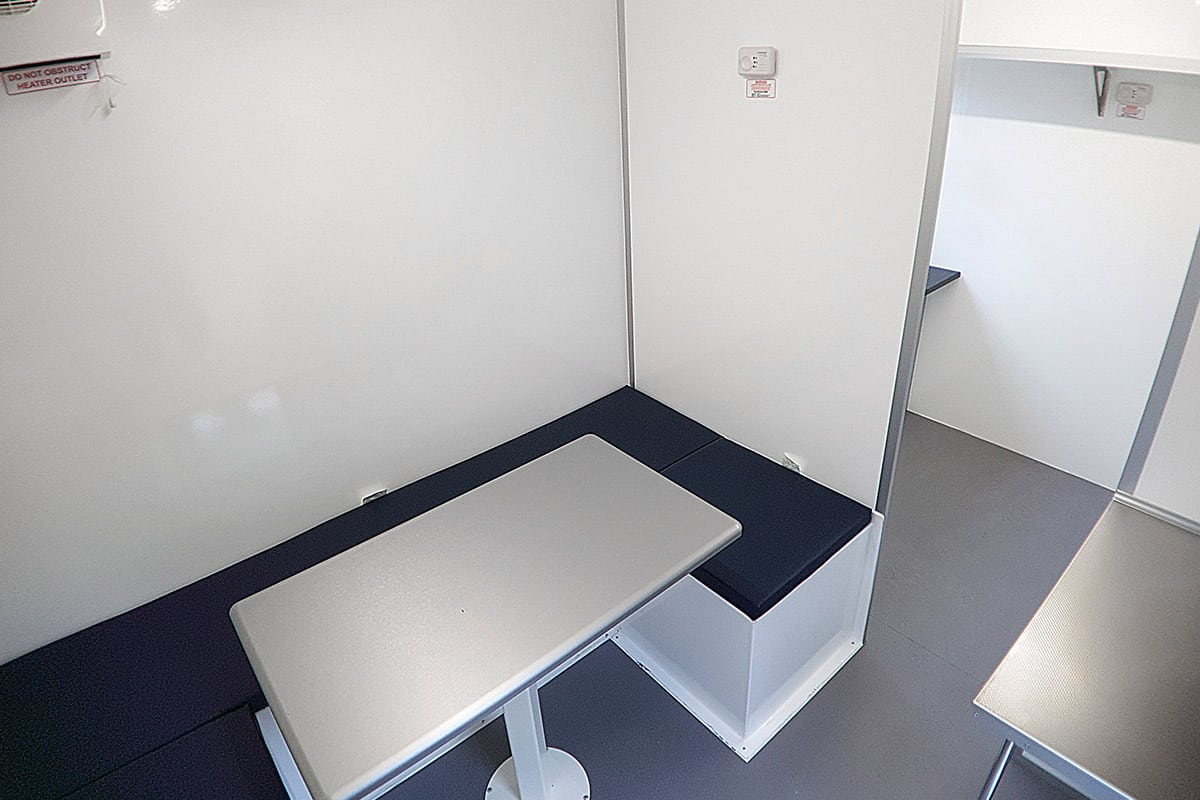

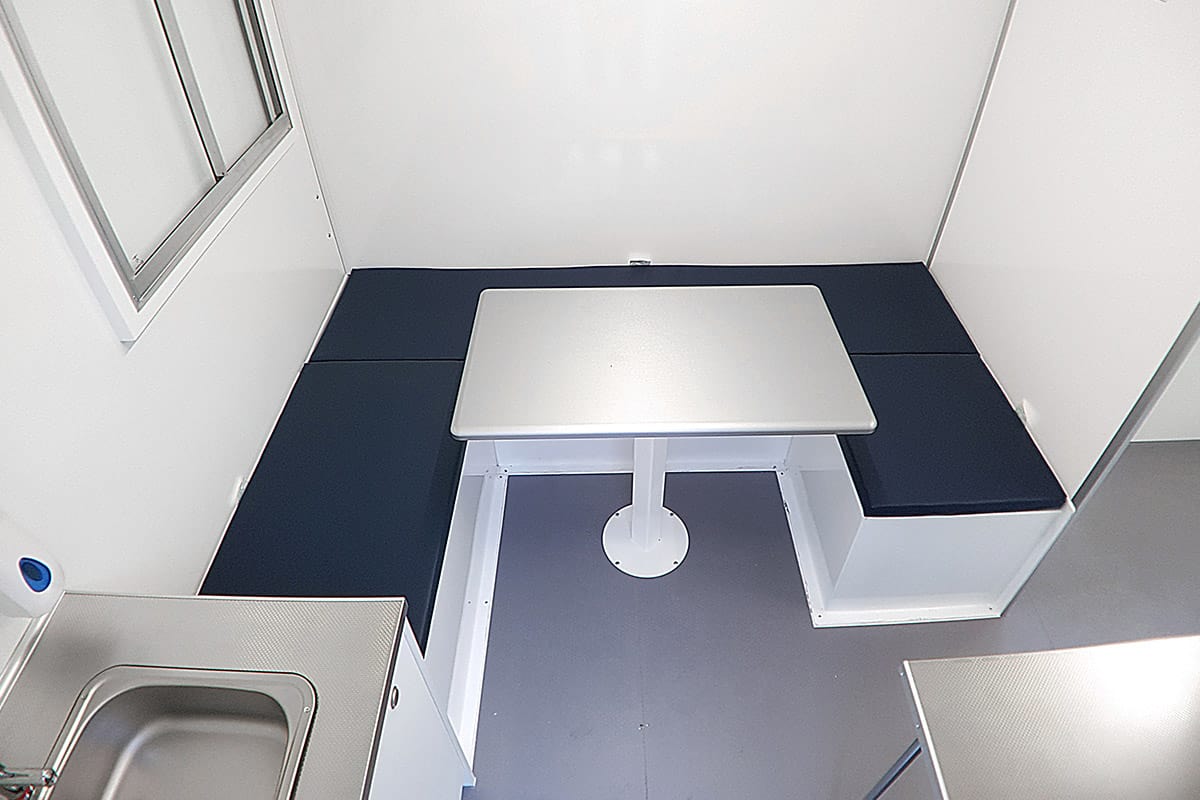

  • Spacious & comfortable seating area

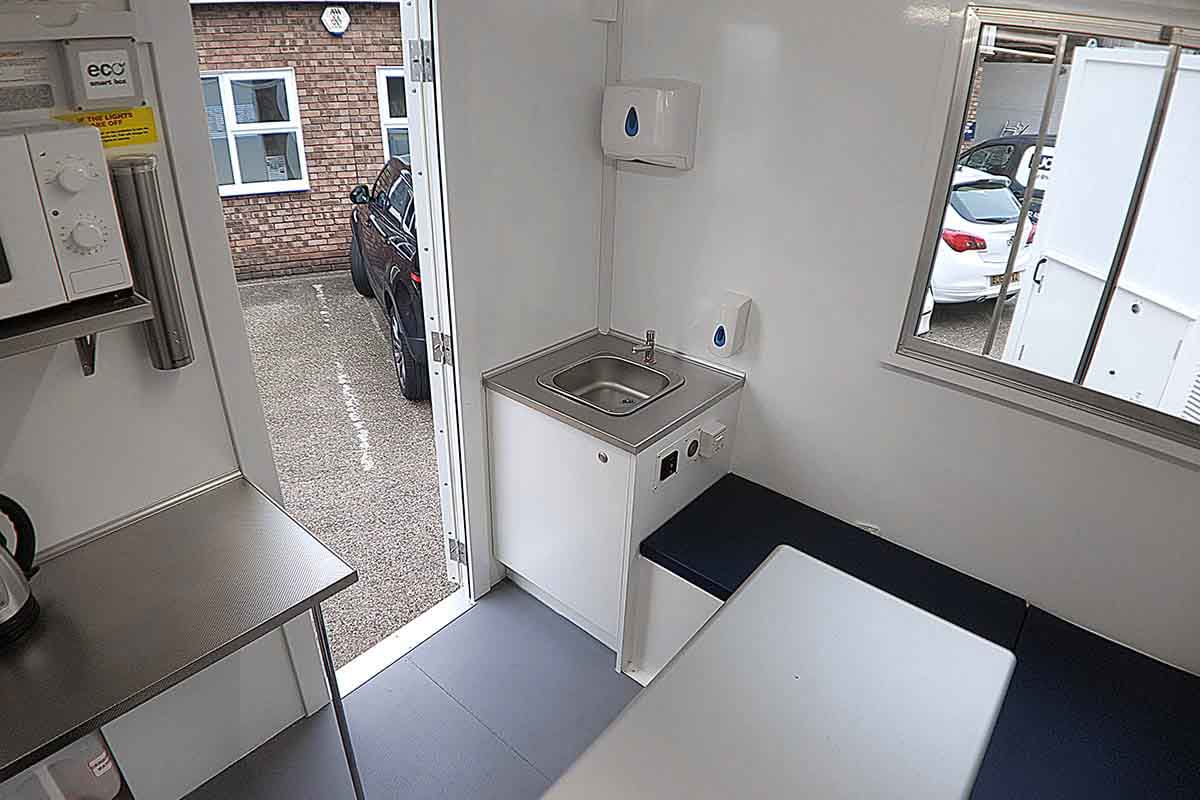

  • Warm water washing facilities

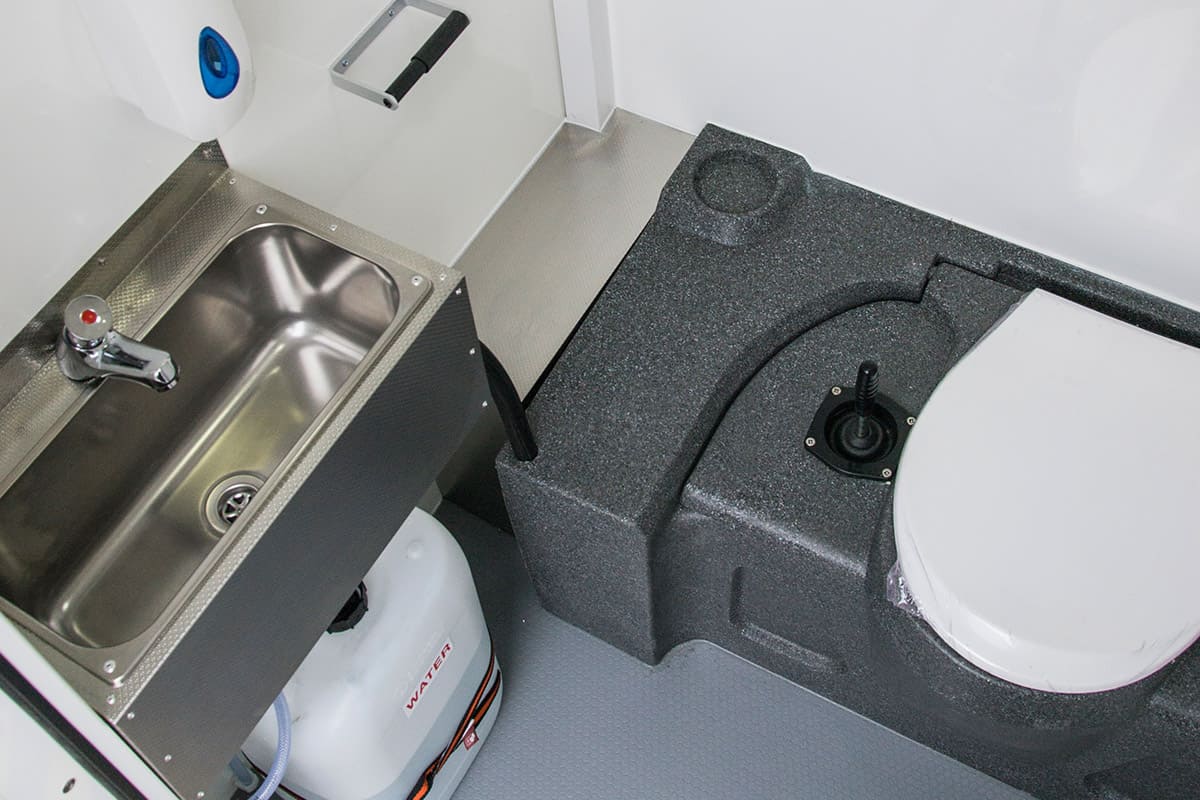

  • Recirculating toilet
  • Forearm wash basin
  • All interior and exterior surfaces are tough, durable and wipe clean
  • Spacious drying room with hanging clothes facility
  • Plug and play sockets: USB's without the generator and 230v sockets

Sustainability

  • Fully insulated wall and roof system with no cold bridging
  • PIR activated LED lighting & hot water without the need for the generator
  • Low noise pollution
  • Low fuel consumption
  • Low CO2 emissions
  • Automatic generator timed shut off for unnecessary fuel usage
  • Low energy LED road lights

Security / Safety

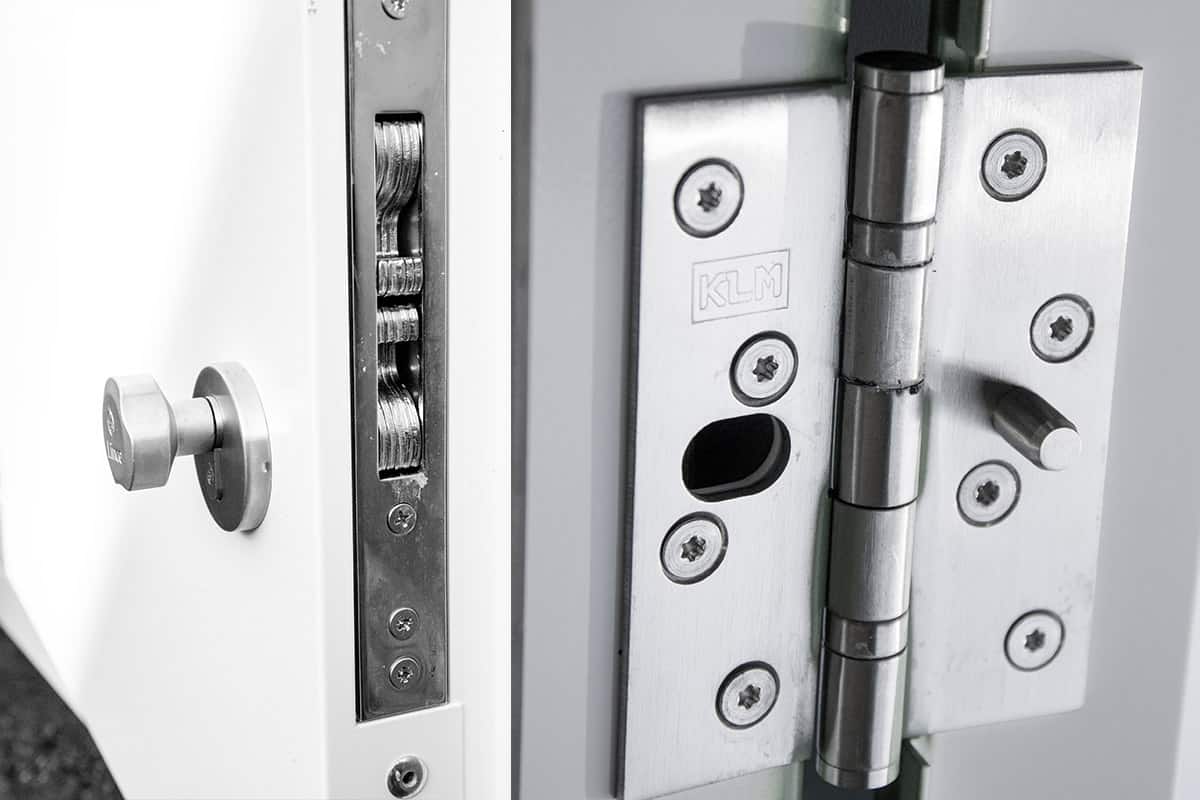

  • Dual heavy duty locking system per door
  • Robust galvanised exterior with high impact resistance

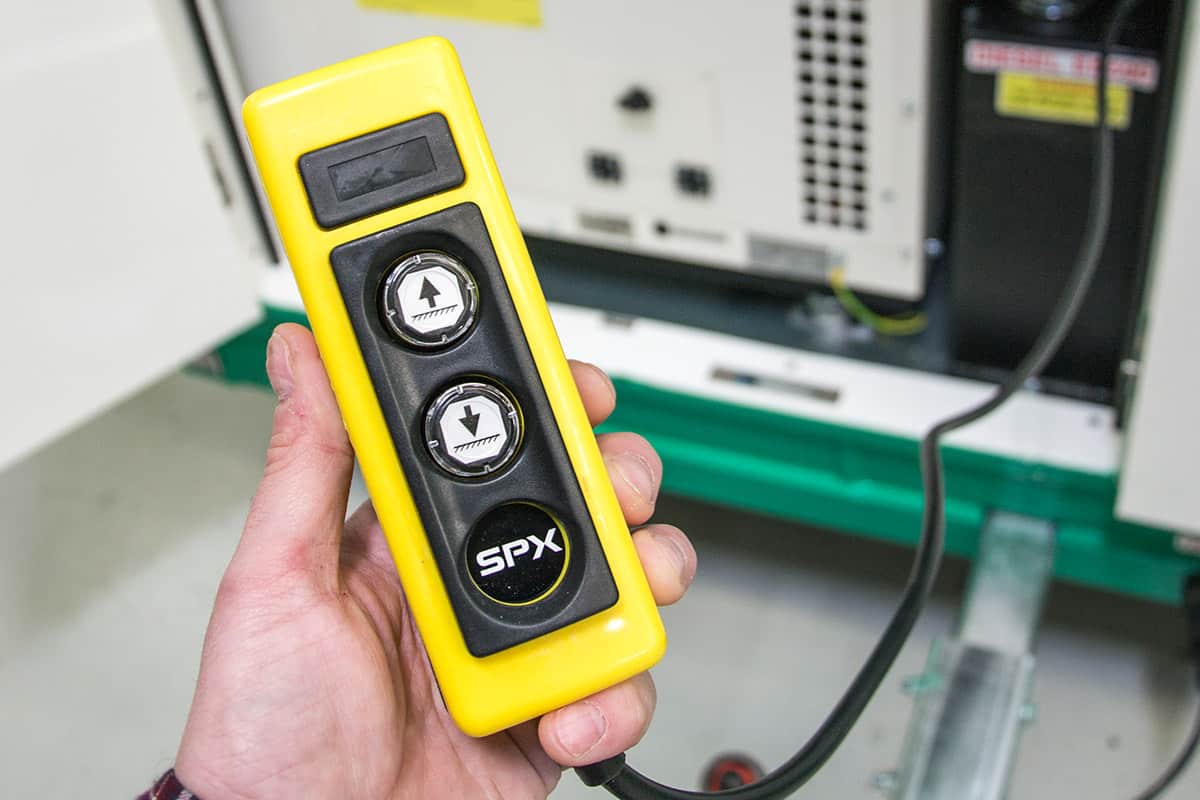

  • Unique hydraulic system for setup in 45 seconds

Construction Specification - 10 Person Welfare with Office

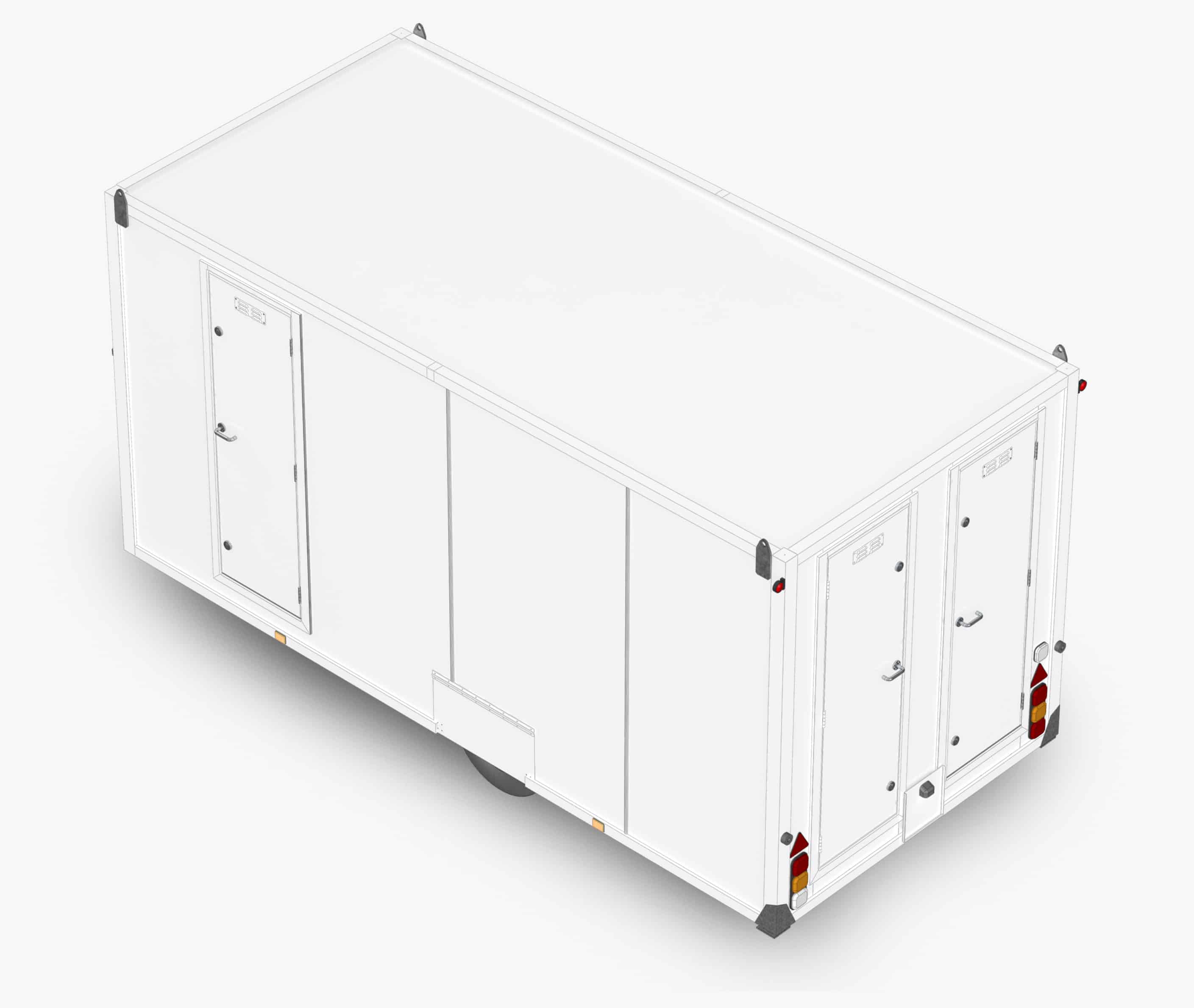

  • Constructed from unique patented (2448660) high strength composite panels. Galvanised steel exterior, seamless GRP interior and high density foam insulation, provides rust free and washable surfaces.
  • Roof: Seamless insulated composite panel
  • Floor: 15mm plywood with slip and wear resistant phenolic coating
  • Wheels: 195R 14"
  • Chassis: Heavy duty galvanised steel.
  • Axle: Electric type approved hydraulic axle.
  • Doors: 3 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.
  • Window: Aluminium with security door locked internally with thumb turn deadlock.
  • Lights: EEC approved built in road lights with removable number plate brackets.

Image Gallery

Explore our image gallery below to gain further insight into our 10 person welfare units.
Mouse over the image & click on the icon to view full size.

Seamless insulated composite panel
Heavy duty galvanised steel
Heavy duty galvanised steel
Seamless insulated composite panel
Welfare Unit With Office
 Heavy duty galvanised steel
Aluminium with security door
Double doors to generator with 2 deadlocks
USB's without the generator
