12 Person Mobile Welfare Unit - Specification

If you require larger mobile welfare facilities for your site, our 12 person unit may be the ideal option. Our 16ft towable welfare units offer canteen facilities and a seating area for up to 12 people, as well as a separate toilet and drying room. This 12 person unit is ideal for construction sites, providing everything you need for the convenience and comfort of your workers while on site. Our 12 person mobile welfare unit complies with HSE regulations and is low maintenance, robust and eco-friendly. When you choose one of our high-quality, eco-friendly welfare units, you will not be disappointed. We ensure that we provide you with the perfect solution for flexibility, ease and comfort on your busy work site.

Why Choose Us for Welfare Unit Hire?

Our expert team is on hand to offer any advice and guidance specific to you and your site: before, during and after the hire period. We will provide you with all the necessary information to allow you to make an informed decision on whether our eco 12 welfare unit is right for you, or whether the demands of your site will be complemented better by one of our other mobile units.

If you would like to find out more about 12 person welfare unit hire, or any of our other products, please feel free to get in touch on 020 3846 1111 or make an enquiry. We are always on hand to offer our friendly and expert advice.

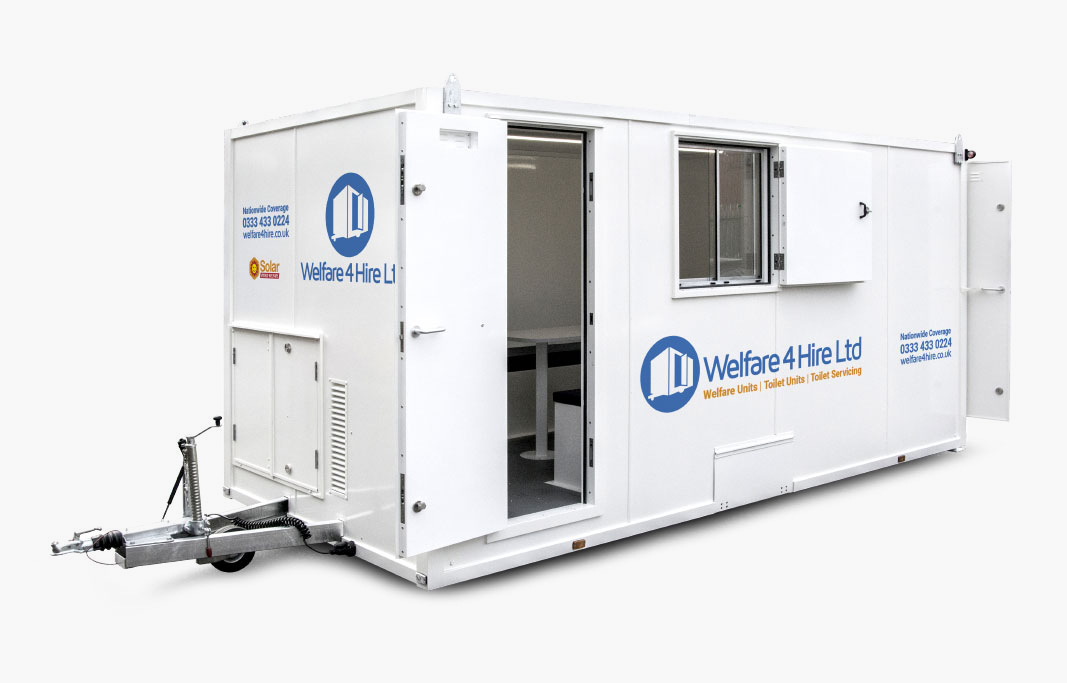

12 Person Welfare Unit

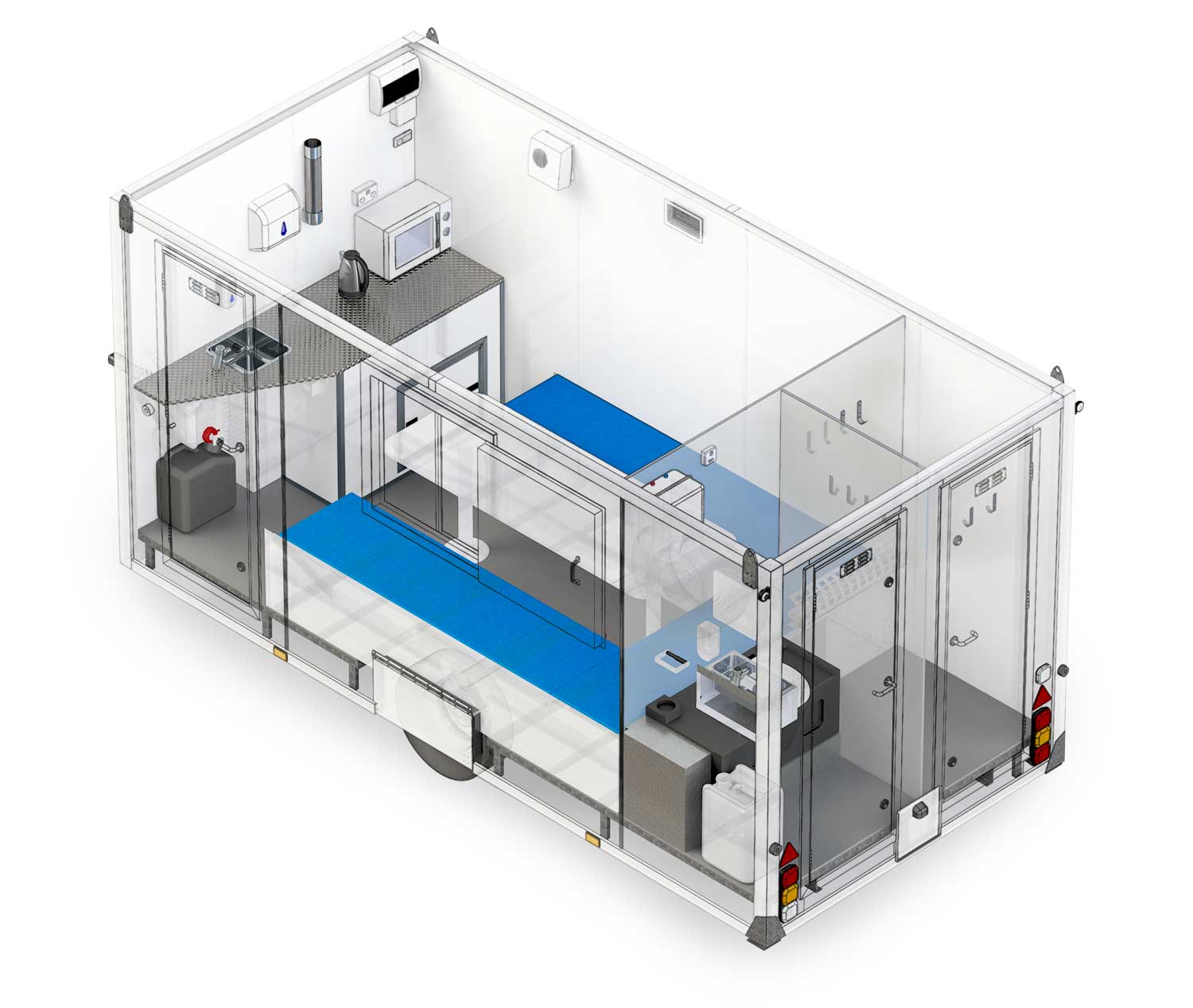

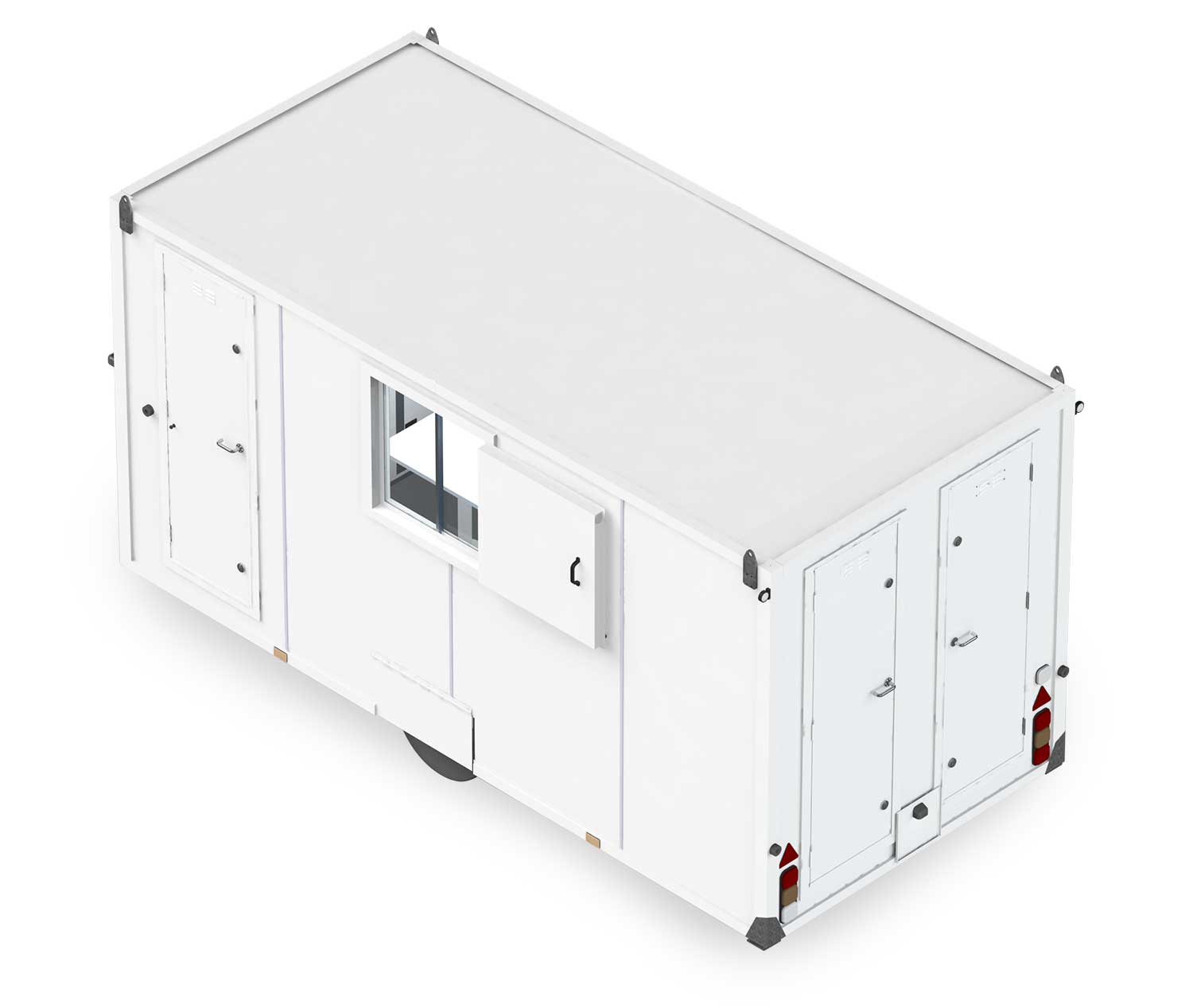

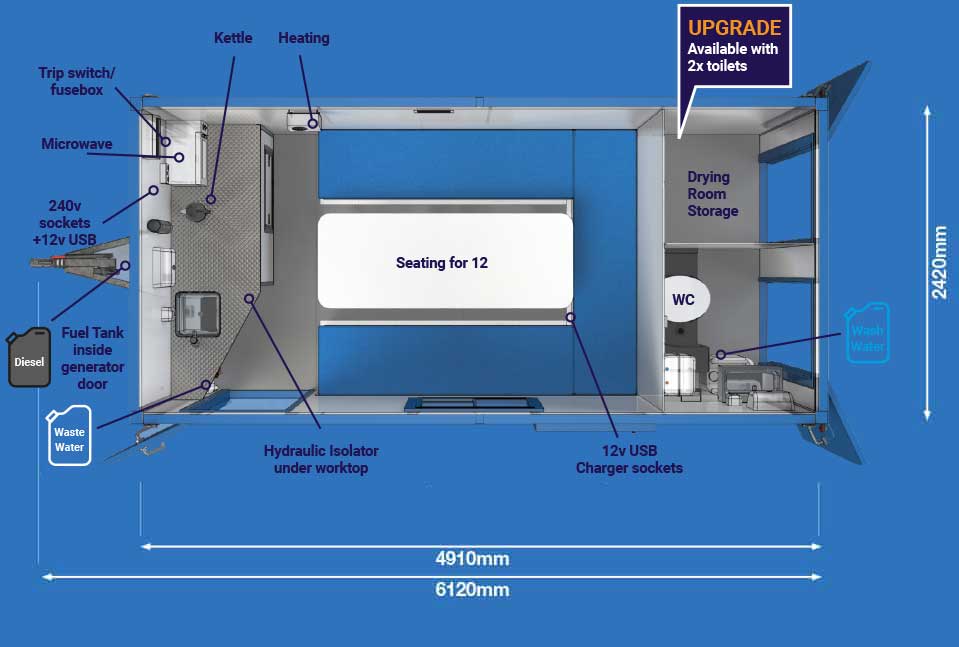

Our 12 person, 16ft mobile welfare units include canteen facilities for 12 with a separate toilet and drying room.

  • High-quality, class-leading welfare unit design
  • Low maintenance, emissions & fuel consumption
  • Ecosmart - Minimises power usage of the generator, to operate in the most efficient way possible
  • Easy to tow and move, ready to use in 45 seconds
  • Compliant with HSE regulations
  • Robust and secure galvanised steel construction

For full specification of our 12 person welfare units please view our brochure.

BROCHURE - 12 Person Mobile Welfare Unit


  • Net Weight: 2145Kg
  • Gross Weight: 2240Kg
  • Unit Length: 4.91m
  • Unit Width: 2.42m
  • Unit Height: 2.36m
  • Towing Length: 6.12m
  • Towing Height: 2.60m
12 person welfare unit



  • Lightweight, easy to tow
  • Soft cushioning hydraulic system
  • Balanced loading, for better towing
  • 13" wheels that, in the event of a puncture, facilitate easy roadside changing
  • Road lights and number plate holder built in, no need for a tailboard to be fitted
  • Accidental collisions can occur, however our corners are designed to absorb impact and are easily maintained

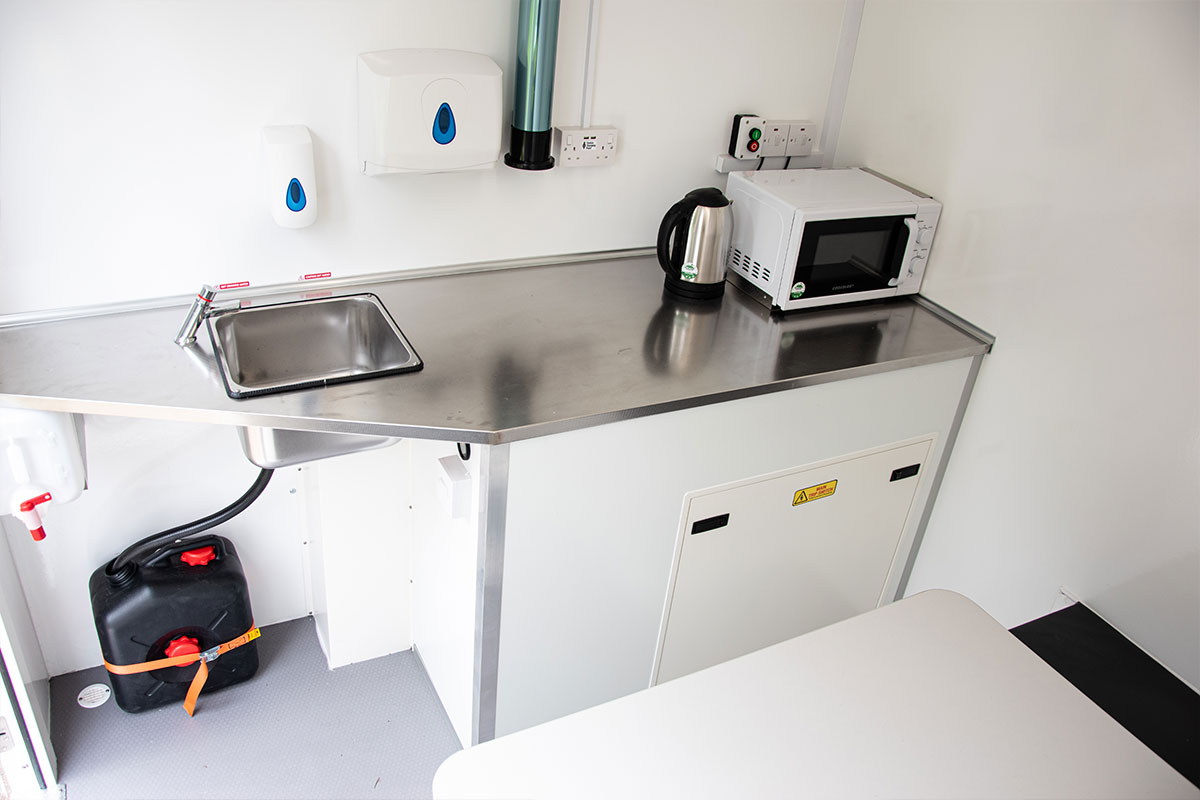

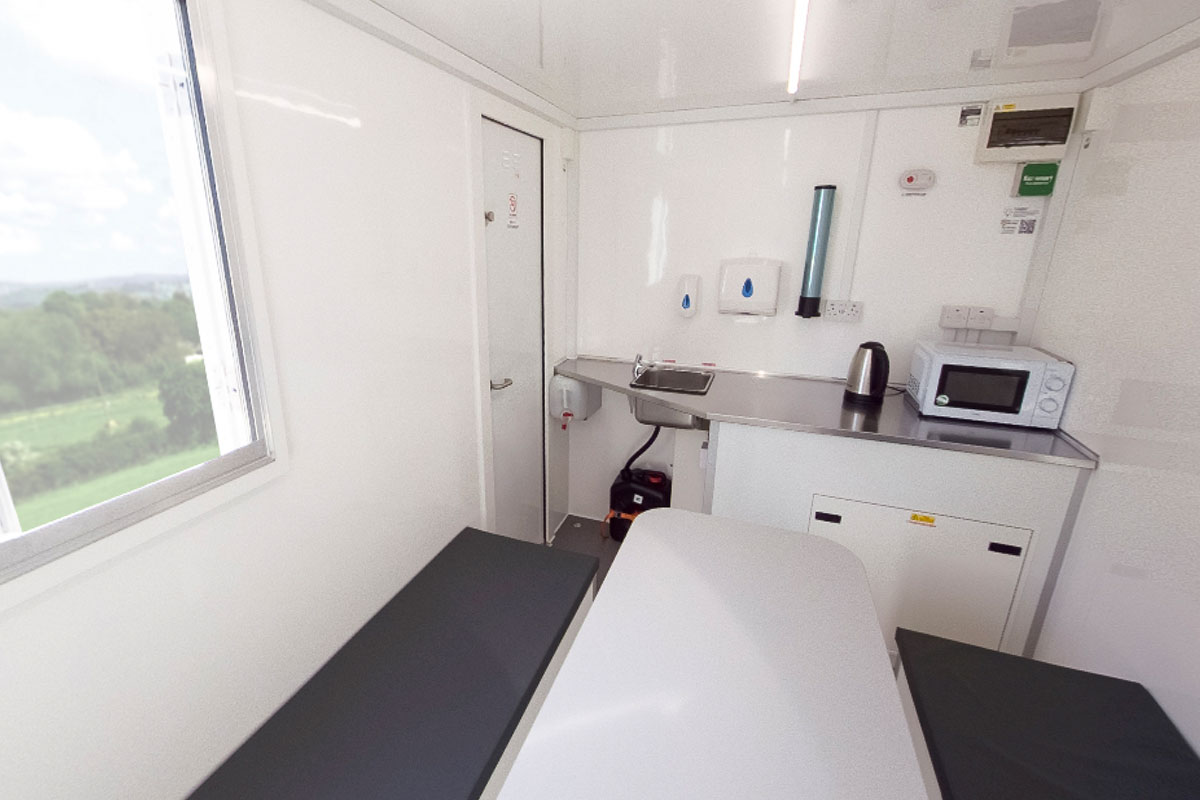

  • Easy to use canteen facilities; kettle & microwave

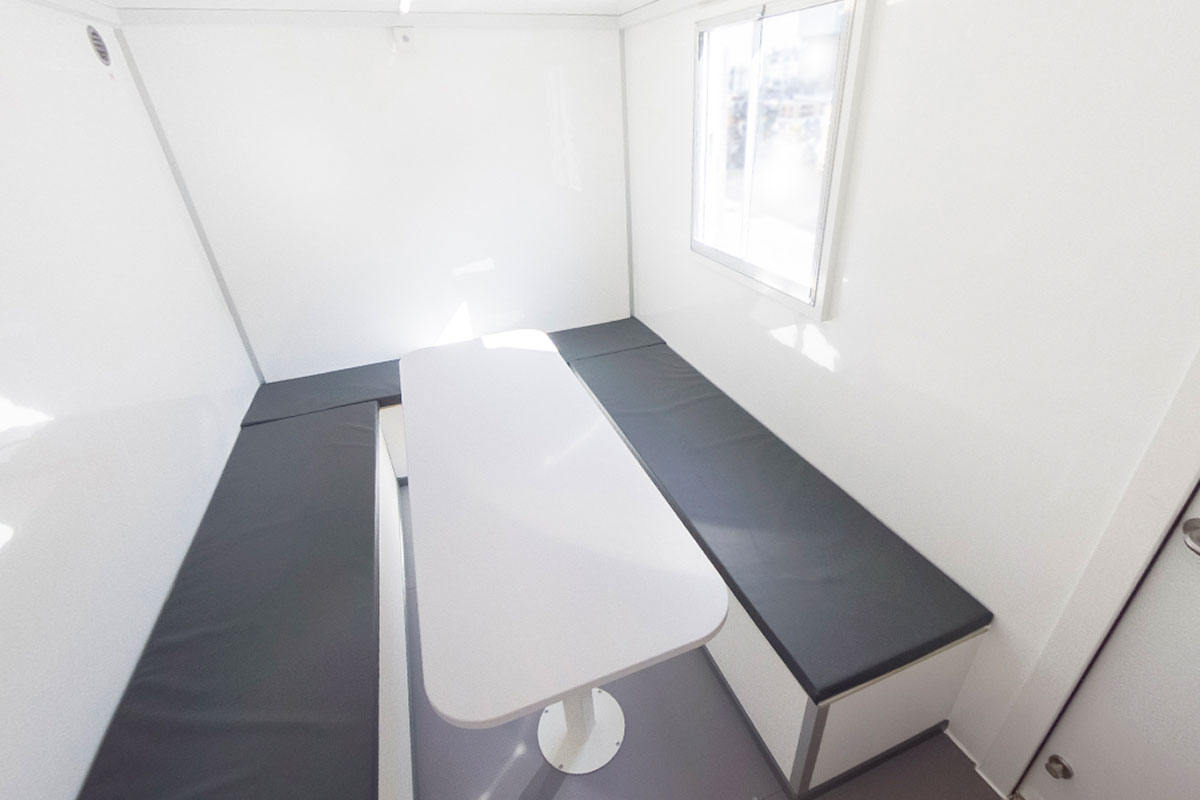

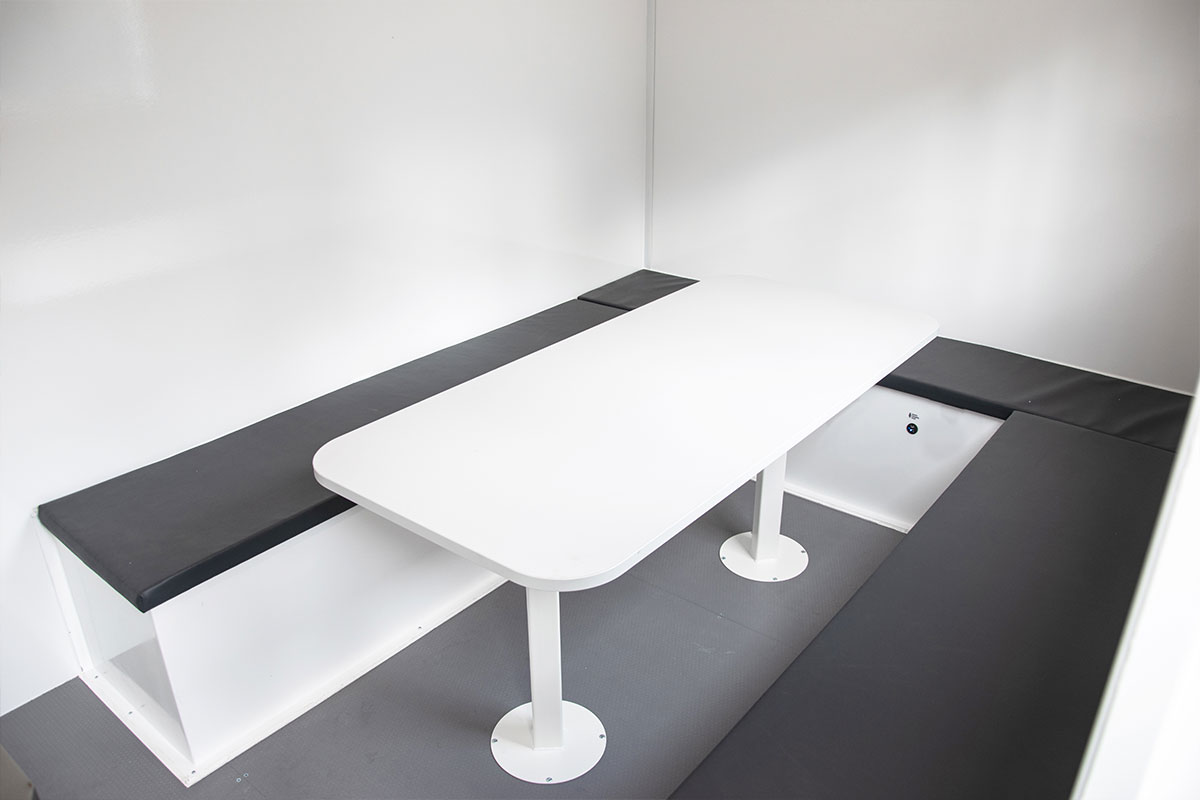

  • Spacious and comfortable seating area
  • Warm water washing facilities

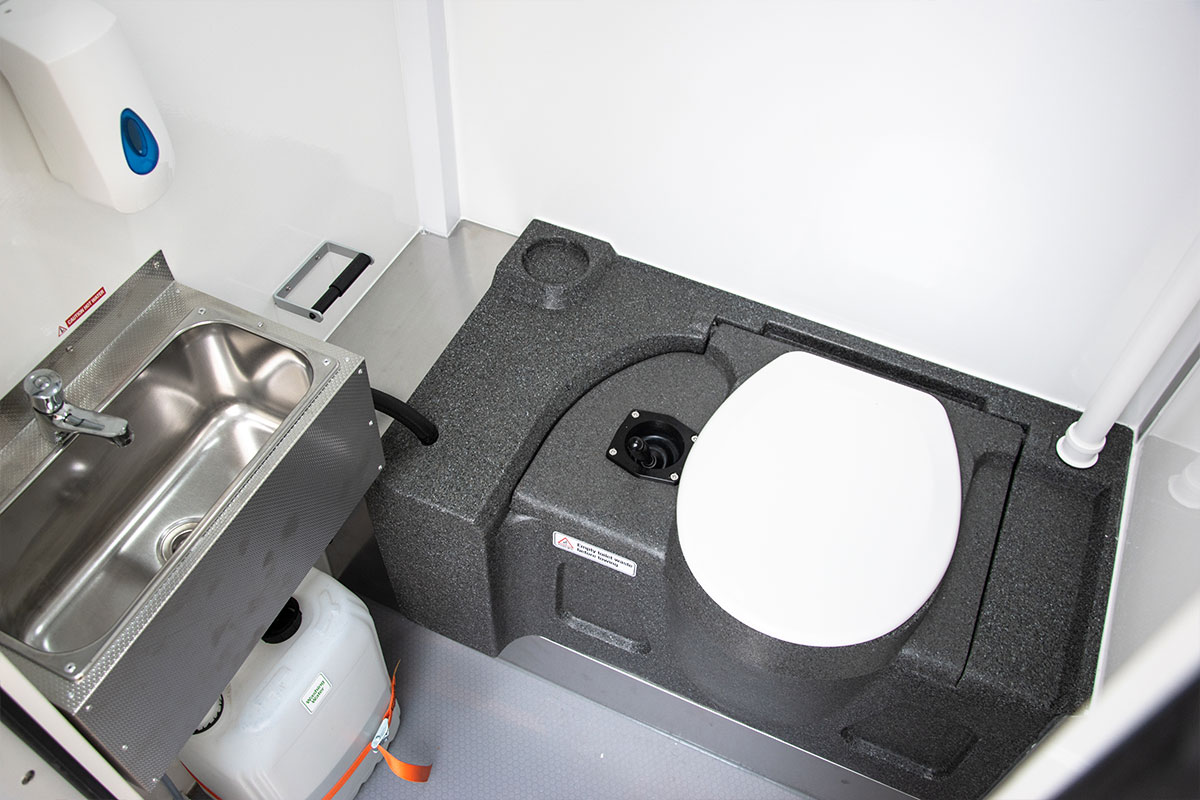

  • Recirculating toilet
  • Forearm wash basin
  • All interior and exterior surfaces are tough, durable and wipe-clean

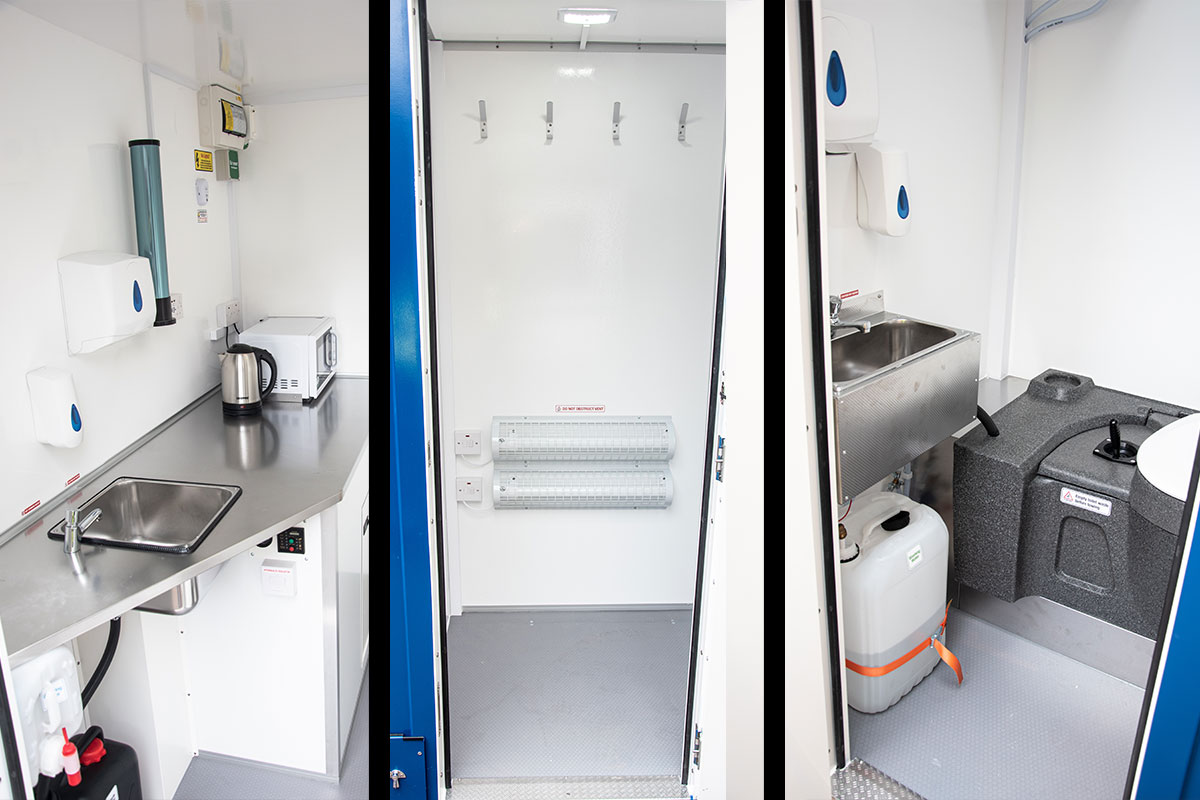

  • Spacious drying room with clothes hanging facility
  • Plug and play sockets: USBs without the generator and 230v sockets


  • Fully-insulated wall and roof system with no cold bridging
  • PIR-activated LED lighting & hot water without the need for a generator
  • Low noise pollution
  • Low fuel consumption
  • Low CO2 emissions
  • Automatic generator timed shut off for unnecessary fuel usage
  • Low energy LED road lights

Security / Safety

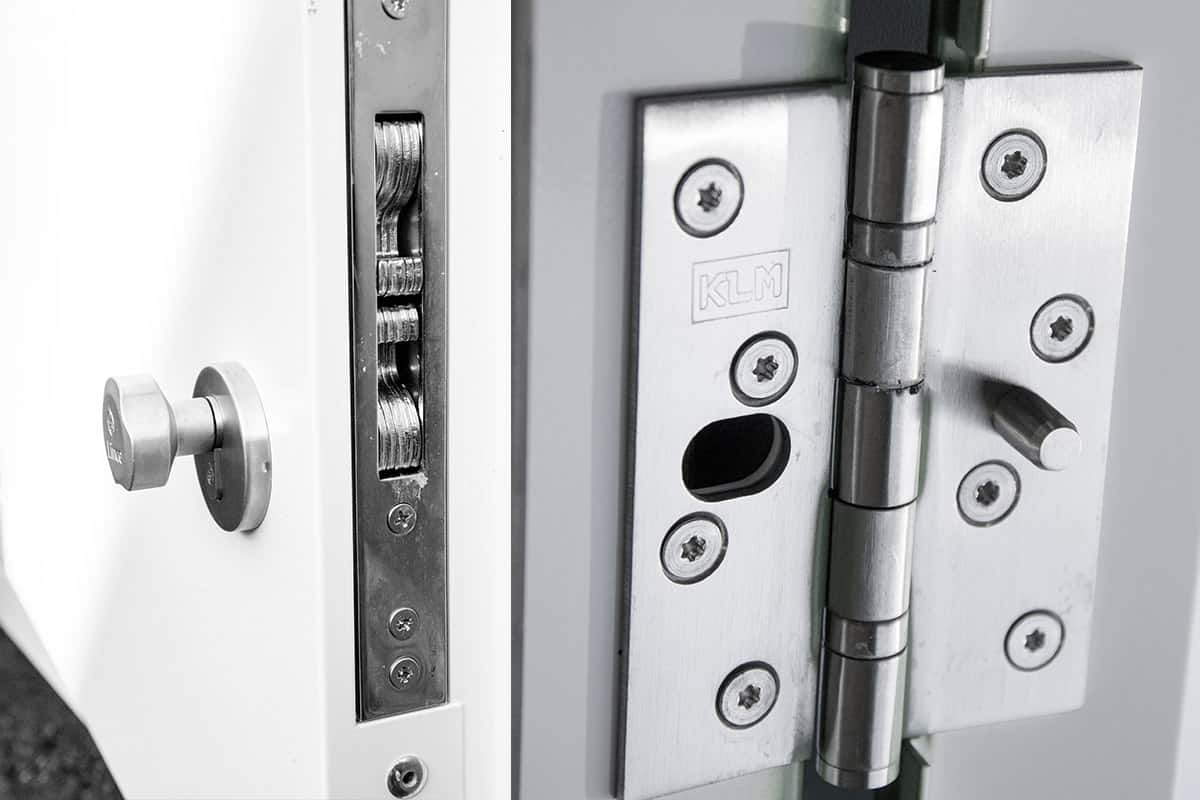

  • Dual heavy-duty locking system per door
  • Robust galvanised exterior with high impact resistance

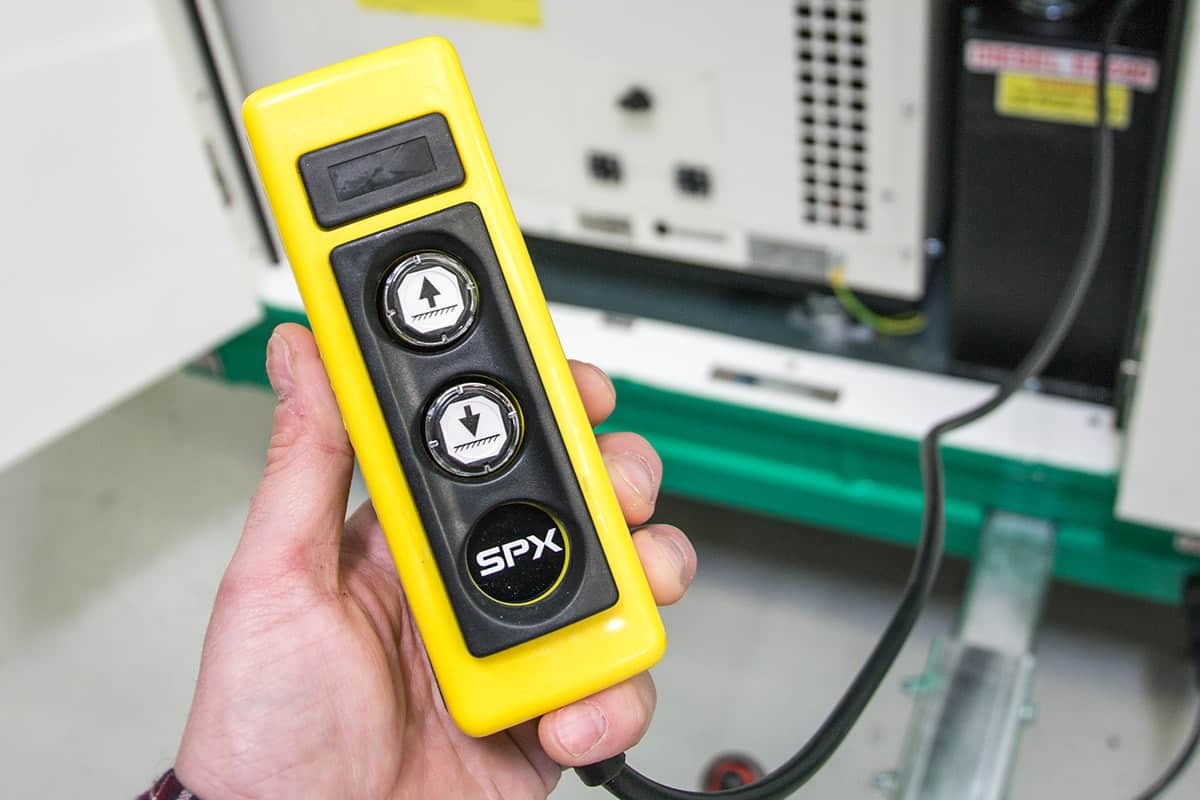

  • Unique hydraulic system for setup in 45 seconds

Construction Specification

  • Constructed from unique patented (2448660) high-strength composite panels. Galvanised steel exterior, seamless GRP interior and high-density foam insulation, provide rust-free and washable surfaces
  • Roof: Seamless, insulated composite panel
  • Floor: 15mm plywood with slip and wear resistant phenolic coating
  • Wheels: 195R 14"
  • Chassis: Heavy-duty galvanised steel
  • Axle: Electric type approved hydraulic axle
  • Doors: 3 x high-security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks
  • Window: Aluminium, with security door locked internally with thumb turn deadlock
  • Lights: EEC approved built-in road lights with removable number plate brackets

Image Gallery

Explore our image gallery below to gain further insight into our 12 person welfare units.
Move your mouse over the image and click on the icon to view full size.

Constructed from unique patented
Electric type approved hydraulic
Aluminium with security door
EEC approved
removable number plate brackets
Galvanised steel exterior
 rust free and washable surfaces
15mm plywood with slip
USB's without the generator
